BUTTERFLY VALVE

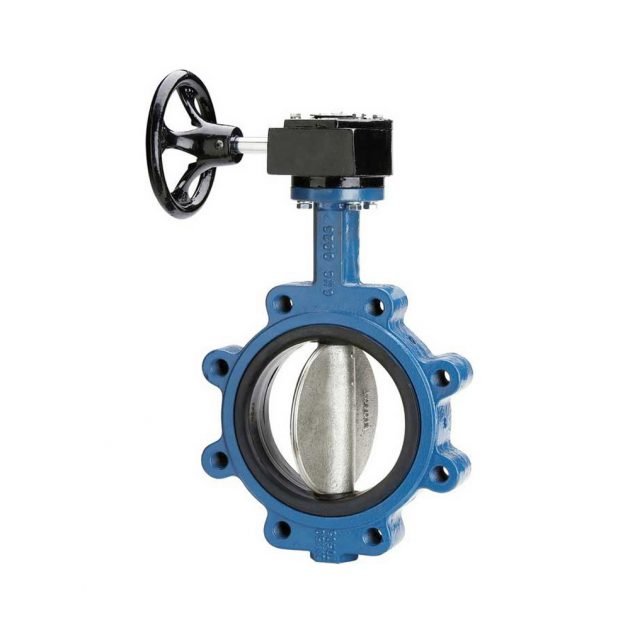

RESILENT SEATED WAFER BUTTERFLY VALVE
The Valves May Be Water Type / Lugged Water Type With Lever Operation (Normally Up To DN150 (6")), Quarter Turn Gear Operated And Actuated Operated For Sizes DN200 And Higher. The Valves Are Bi- Directional And Suitable For On/Off And Control Applications. The Applicable Standards Are
GENERAL SPECIFICATIONS
| Design STD: | API609 / B55155/AWWA C150/IS13095 |
|---|---|
| Face To Face : | ASME B16.10 / IS13095 |
| To Suit : | Flanges As Per ANSI B16.5 #150, / BS10 |
| Size : | DN40 To DN 900 (1.5" To 36") |
| Body : | CI/DI/WCB/CFB/CFBM Etc. |
| Disc : | DI/WCB/CFB/CFBM/NAB |
| Seat : | NBR/EDM/VITON/SILICON / Food Grades |
| General Applications : | Water Treatment Plants, Utility Lines, HVAC, Gases, Oil And Compressed Air With Powder |

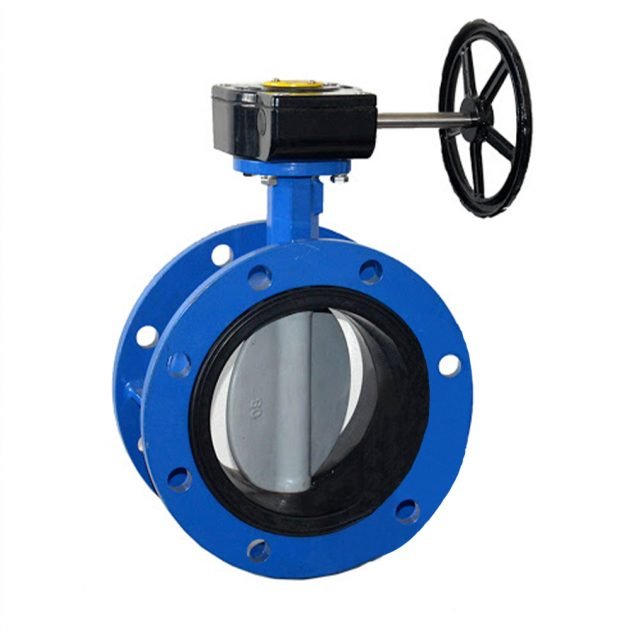

FLANGED END RESILIENT SEATED BUTTERFLY VALVES
DOUBLE OFFSETBUTTERFLY VALVES
The Valves May Be Water Type / Lugged Water Type / Flanged Type. The Valves Are Bi-Directional And Suitable For Manual And Auto Operation (Pneumatic / Electrical) For On/Off And Control Applications. The Valves Can Be Soft Seated Or Metal Seated.
GENERAL SPECIFICATIONS
| Design STD: | API609 / B55155/AWWA C150/IS13095 |
|---|---|
| Face To Face : | ASME B16.10 / IS13095 |
| To Suit : | Flanges As Per ANSI B16.5 #150,/ #300 |
| Pressure Rating : | #150 And #300 |
| Size : | DN50 To DN 600 (1.5" To 24") |
| Body : | WCB/CF8/CFBM Etc. |
| Disc : | CF8/CF8M/NAB |
| Soft Seat : | RTFE, PTFE,UHMWPE (Upto 2000C) |
| Metal Seat : | SS316 Etc. (Upto 500°C) |
| General Applications : | Gases Like Nitrogen,Ammonia, Chlorine, Air Including HVAC, Steam, Potable Water, Petrol, Dieseland Other Hydrocarbons, Liquids With Abrasive And Suspended Particles. |

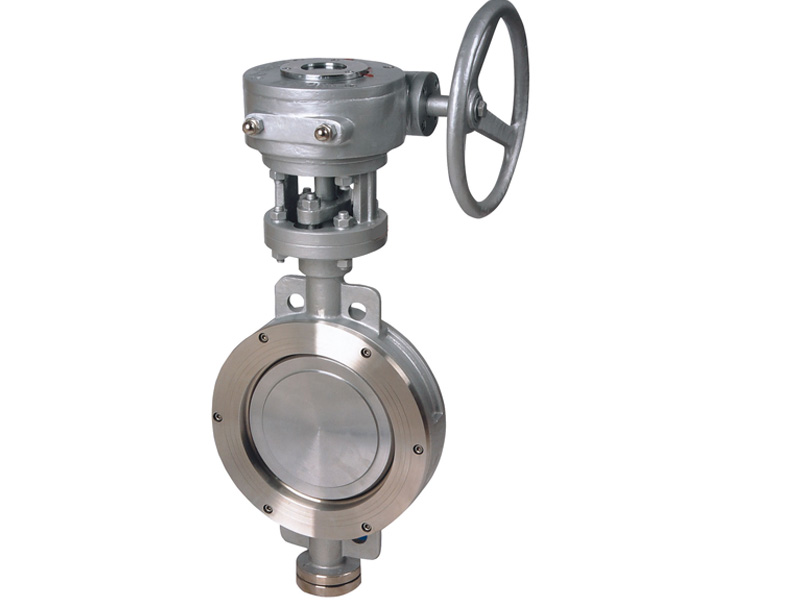

TRIPPLE OFFSETBUTTRFLY [METAL SEATED] VALVES WAFER AND FLANGED VALVES.

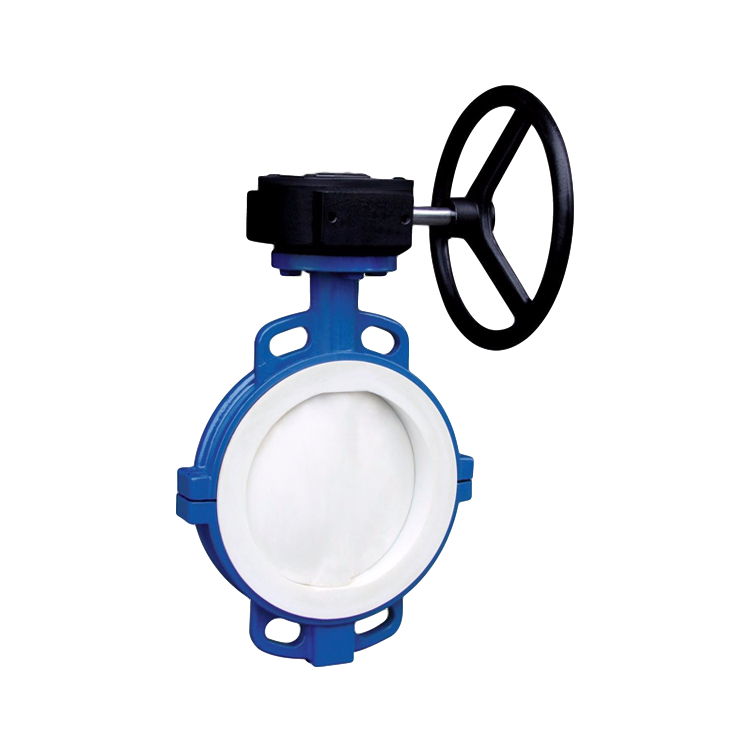

TEFLON LINED BUTTERFLY VALVES
Lined Butterflyvalves Are Used For Highly Corrosive Applications Like Concentrated Acids And Alkali.
GENERAL SPECIFICATIONS
| Size Range: | DN40 To DN 600 |
|---|---|
| Body : | DI / WCB With Replaceable / Moulded PTFE /FEP/PFA Liner Of 3mm Thick. |
| Disc : | SS304 /SS316 With Minimum 3mm Thick PFA Moulding |
| Pr Rating : | PN10 Upto 300NB And PN6 Above 300NB |
| Body Ends : | PN10 Upto 300NB And PN6 Above 300NB |
| Actuator Mounting Flange : | Wafer /Lugged Up To 300NB And Double Flanged Above 300NB. |
| Manufacturing Standards | |
| Design & Dimensions Standard : | API 609 |
| Test Standard : | ISO 9393-2/API 598 / BS EN 12266-1; 2003 |
| F To F Dimension : | API 609 CATEGORY'A' |
| End Connection: | ANSI B16.5; 150#; |
