GATE, GLOBE & CHECK VALVES

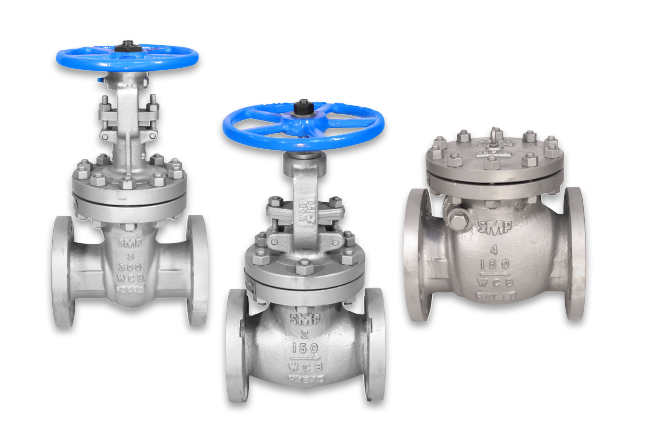

CAST VALVE
GENERAL SPECIFICATIONS
| Bonnet Type | BoltedOS & Y / PressureSealed |
|---|---|
| Design STD: | AP1600/ BS1414/ API 6D |
| Face To Face : | As Per ASME B16.10 |
| Ends : | Butt Weld / Flanged Ends |
| Testing Standard : | As Per ISO 5208 /API598 |
| Pr. Rating : | #150 To #1500 |
| Size : | 1/2" To 24" |
| Body Bonnet : | WCB / CF8/CF8M/LCB |
| Wedge : | WCB/C-15/CF8/CF8M |
| Seat : | 13% Cr / Stellite-6 (Hard Face Welded) |
| Temperature Range : | -100°C То 800°C |
| Operators (Gate & Globe) : | Hand Wheel, Gear Box / Electric / Pn. Actuated. |

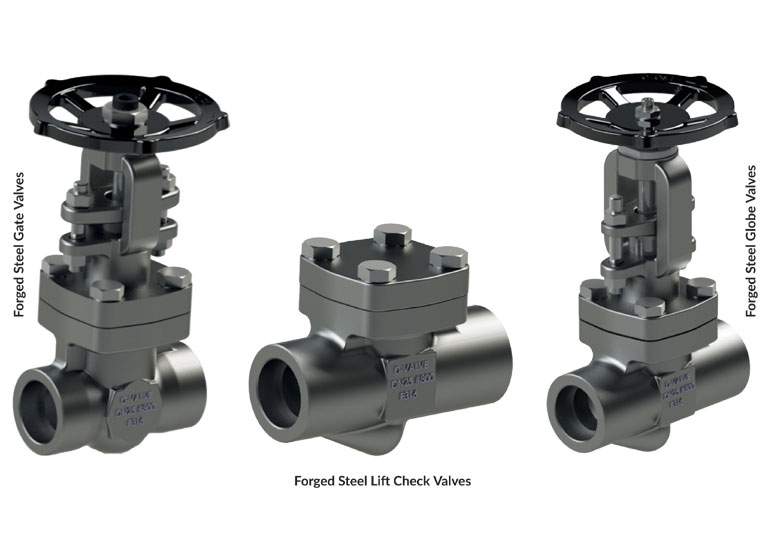

FORGED VALVES (GATE, GLOBE AND CHECK)

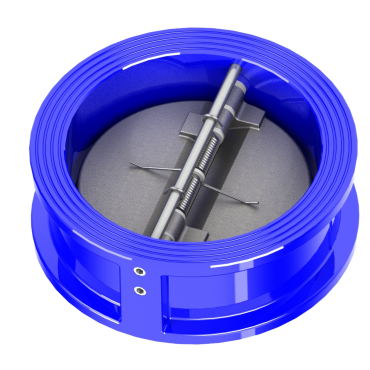

DUAL PLATE CHECKVALVES
GENERAL SPECIFICATIONS
| Design STD: | As Per API 6D/ API 594 |
| Face To Face : | As Per ASME B16.10 |
| Ends : | Wafer/Lugged/Flanged |
| Testing Standard : | As Per AP1598 |
| Pr. Rating : | #150 To #2500 |
| Size : | 2" To 24" |
| Body : | DI/WCB/ CF8/CF8M/ LCB, Etc. |
| Door : | WCB / C-15/CF8/CF8M, Etc. |
| Spring : | SpringSteel/SS304/SS316/Inconel Etc. |
| Metal Seat : | 13% Cr / Stellite - 6 (Hard Face Welded) |
| Soft Seat : | EPDM/NBR/PTFE/VITON |
| Temperature Range : | -100°C То 800°C |
WAFER CHECK VALVES

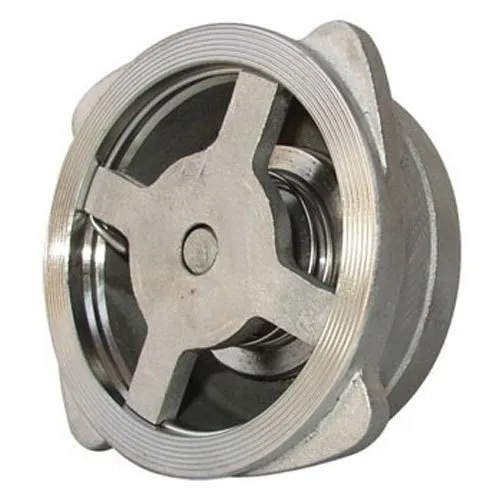

NON-SLAM CHECK VALVES
GENERAL SPECIFICATIONS
| Face To Face : | API 594 |
| Ends : | Wafer Type |
| Testing Standard : | API 598 |
| Pr. Rating : | #150 To #300 |
| Size : | 1" To 8" |
| Body : | CF8/CF8M |
| Disc : | CF8/CF8M |
| Seat : | Base Material / Stellite-6 |
| Temprature Range : | -100°C то 200°C. |

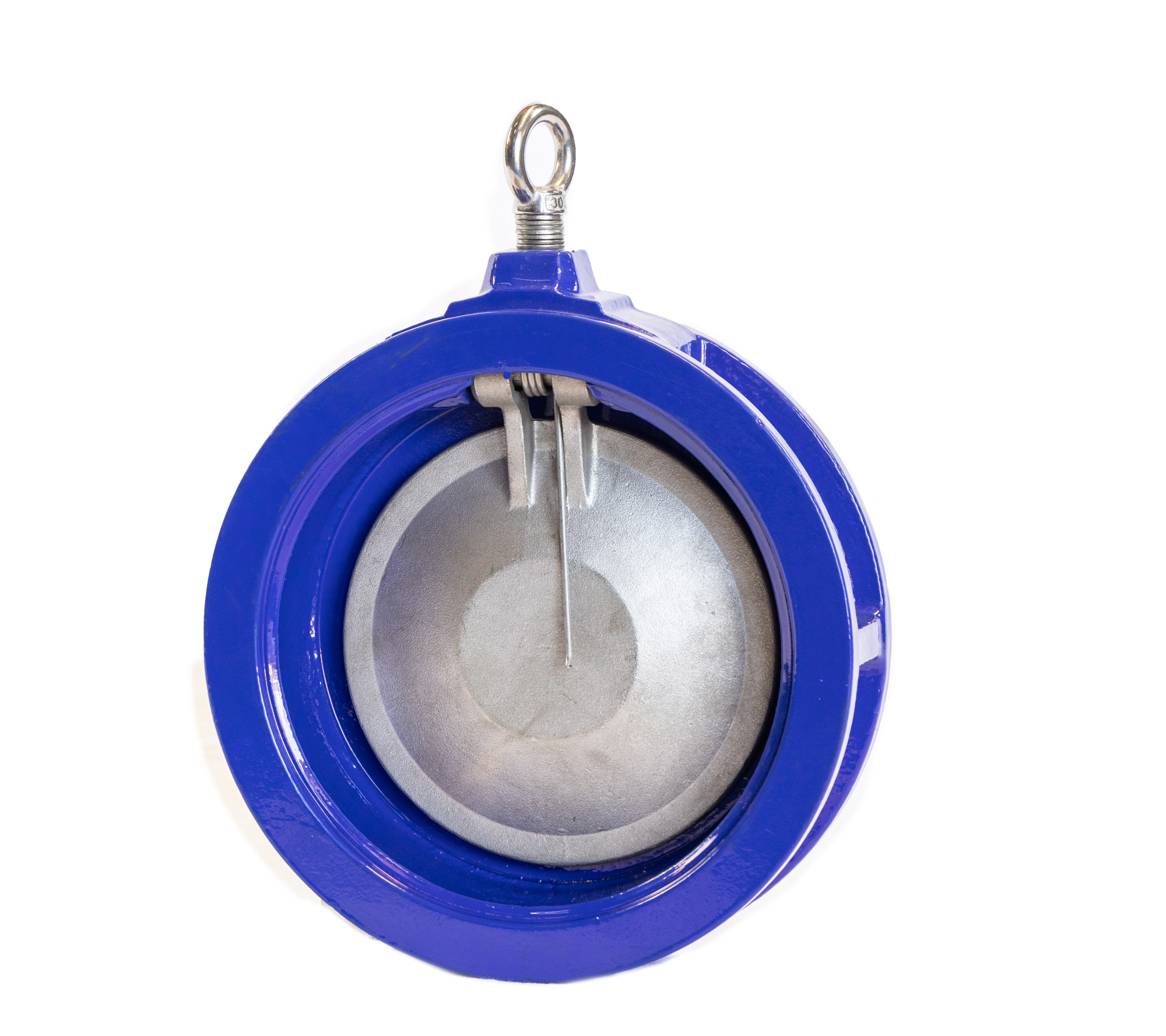

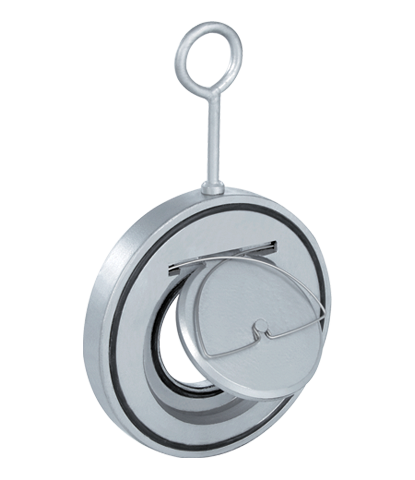

WAFER SINGLE DISC CHECK VALVES

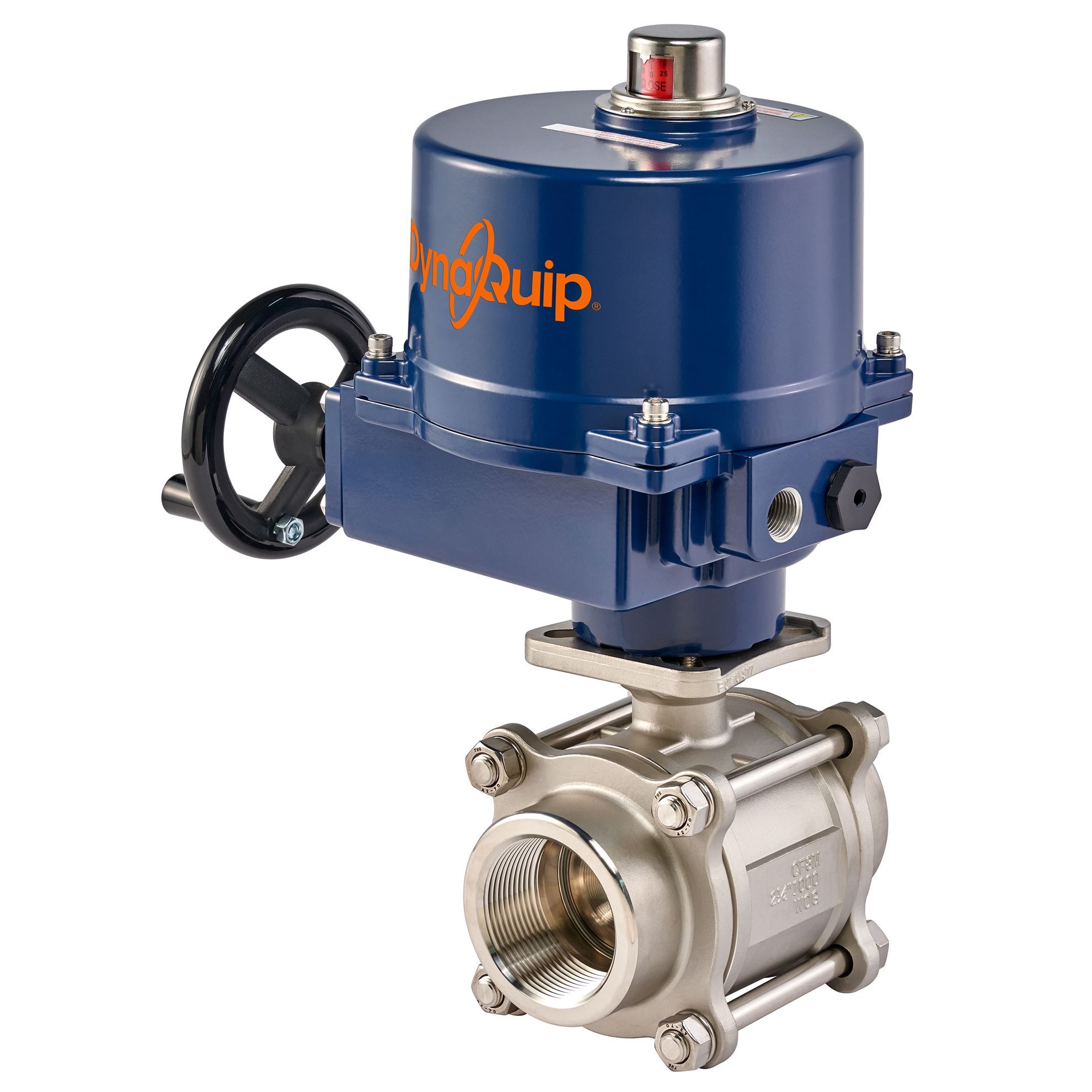

ELECTRICALLY ACTUATED VALVES
